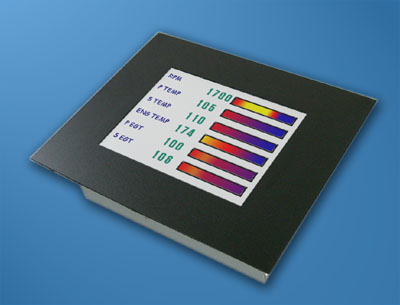

vGaugeG12N shown
with weather-proof touch screen

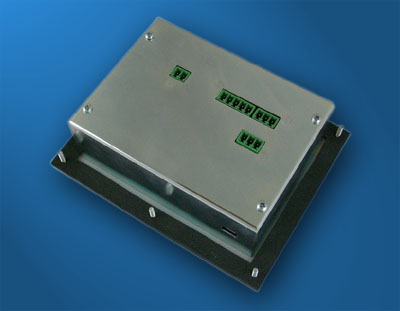

vGaugeG12N power and
data connections to remote sensor unit |
|
Remote Sensor unit |
| When connected to vGauge-Remote
sensor unit, up to 16 color digital gauge readings are possible. There is a
16' max cable length with USB and 150' max cable length with RS232
(serial) interface. |
|
Weather-Proof touch screen |
| Completely sealed screen
is water and weather resistant yet allows operation using touch
commands |
|
Color Display |
| 4" diagonal sunlight
readable color LCD is bright and easy to view. QVGA 320X240 pixel
display format can fit up to 12 gauges on a single page. |
|
Digital Interfaces |
| Available with USB 2.0 or
RS232 serial connections to vGauge-Remote sensor unit or PC/Laptop.
|
|
Multi-function unit |
| Can control two remote
sensor units or switch units from a single display for up to 32 gauges
easly accessible via touch commands |
|
Display Modes |
| User defined gauge
displays. Pick from 10 graphic options with customized labels and text
sizes using vDash Virtual Instrument Design software. Load up to 8
different display pages for real-time use. |
|
Mounting options |
| Flush mount in dash or
console. |
|
Calibration Tables |
| 12 user modifiable sensor
calibration tables. 256 data lookup points per sensor input. 4
character display lookup for each of 256 data points. |
|
Supply Voltage |
| Operates on 4V-14V with an
optional adapter for 24 Volt systems. Operates directly from USB power
(5V). Unit draws 400 mA under normal conditions |
|
Flash Port: |
| Firmware upgrades can be
performed in the field without sending unit to factory |
|
Data Format |
| NMEA 0183 $IIXDR sentences
- one for each of the 16 sensors. Continuous transmission once per
second. |
|
Alarms |
| Individual min and max
alarms for each of 16 sensor inputs. All alarms are user programmable.
Individual gauge displays will flash or change color when in alarm condition |
|
Capture Interval |
| Unit continuously samples
all sensor inputs and performs a multi-point average. Averaged data is
formatted into a NMEA $IIXDR sentence and output once per second.
|
|
Dimensions |
| Rugged aluminum
enclosure measures 5" X 4.5" X 1.55" |
| |
|
